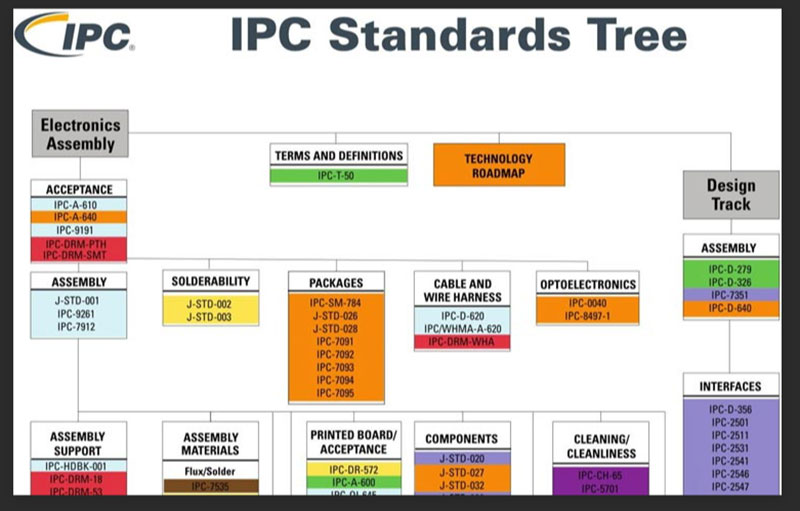

Introduction to Common Standards for Printed Circuit Boards

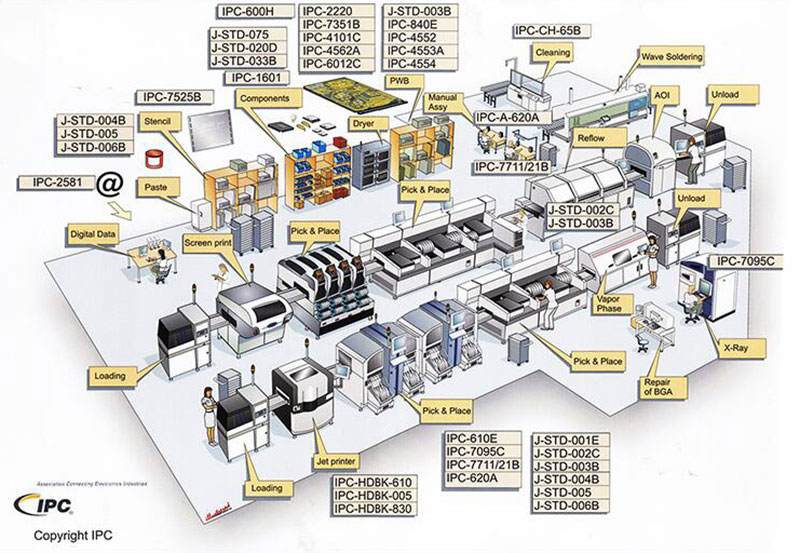

1、IPC-ESD-2020: electrostatic discharge control procedure development of the joint standard. Includes the design, establishment, implementation and maintenance necessary for electrostatic discharge control procedures. Based on the historical experience of certain military and commercial organisations, to provide guidance for the treatment and protection of electrostatic discharge sensitive period.


2、IPC-SA-61 A: Manual for post-welding semi-aqueous cleaning. Covers all aspects of hemihydrate cleaning including chemical, production residues, equipment, processes, process controls, and environmental and safety considerations.




3、IPC-AC-62A: Post-solder aqueous cleaning manual. Describes manufacturing residues, types and properties of aqueous cleaning agents, the process of aqueous cleaning, equipment and processes, quality control, environmental control, and employee safety, as well as the determination of cleanliness and the cost of that determination.


4、IPC-DRM -4 0E: Through-Hole Solder Joint Evaluation Desktop Reference Manual. Detailed descriptions of components, hole walls, and solder surface coverage as required by the standard, in addition to computer-generated 3D graphics. Covers fill, contact angle, dip, vertical fill, pad coverage, and numerous solder joint defects.


5、IPC-TA-722: Welding Technology Assessment Handbook. Includes 45 articles on various aspects of soldering technology covering general soldering, soldering materials, manual soldering, batch soldering, wave soldering, reflow soldering, gas phase soldering, and infrared soldering.


6、IPC-7525: Stencil Design Guide. Provides guidelines for the design and manufacture of stencils for solder paste and surface mount binder application i Also discusses stencil design for the application of surface mount technology and describes stencils with through-hole or flip chip components? Quintessential bonding techniques, including overprinting, dual-printing, and staged stencil design.




7、IPC/EIA J-STD-004: Specification Requirements for Fluxes I includes Appendix I . Contains technical specifications and classification of rosin, resins, etc., organic and inorganic fluxes classified according to the halide content and degree of activation in the flux; also includes the use of fluxes, substances containing fluxes, and low-residue fluxes used in no-clean processes.


8、IPC/EIA J-STD -005 :Solder Paste Specification Requirements I includes Appendix I . It lists the characteristics and specification requirements for solder pastes, and also includes standards for test methods and metal content, as well as stickiness, collapse, solder balls, adhesion, and solder dip performance of solder pastes.


9、IPC/EIA J-STD-0 06A: Requirements for specifications for electronic grade solder alloys, fluxes and non-fluxed solid solder. Provides nomenclature, specification requirements and test methods for electronic grade solder alloys, for flux and non-flux solid solders in bar, strip and powder form, for electronic solder applications, and for special electronic grade solders.


10、IPC-Ca-821: General requirements for thermally conductive binders. Includes requirements and test methods for thermally conductive dielectrics for bonding components in place.


11、IPC-3406: Conductive Surface Coating Binder Guidelines. Provides guidance on the selection of conductive binders as an alternative to solder in electronics manufacturing.


12、IPC-AJ-820: Assembly and Soldering Manual. Contains descriptions of inspection techniques for assembly and soldering, including terms and definitions; types of printed circuit boards, components and pins, materials for solder joints, component mounting, specification references and outlines for design; soldering techniques and encapsulation; cleaning and laminating; quality assurance and testing.




13、IPC-7530: Temperature Profile Guide for Batch Soldering Processes (Reflow and Wave Soldering). Uses a variety of test methods, techniques, and approaches in temperature profile acquisition to provide guidance in establishing optimum graphs.


14、IPC-TR-460A: Printed Circuit Board Wave Soldering Troubleshooting Checklist. A list of recommended corrective measures for failures that may be caused by wave soldering.


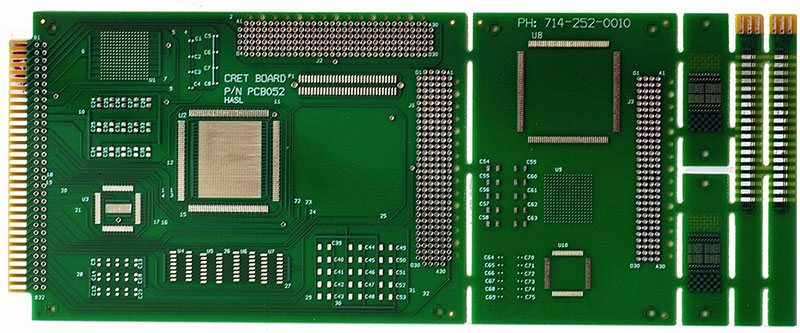

15、IPC/EIA/JEDEC J-STD-003A. Solderability Testing of Printed Circuit Boards.


16、J-STD-0 13: Application of Ball Pin Grid Point Array Packages (SGA) and Other High Density Technologies. Establishes specification requirements and interactions needed for the printed circuit board packaging process to provide information for high performance and high pin count integrated circuit package interconnections, including information on design principles, selection of materials, board fabrication and assembly techniques, test methods, and reliability expectations based on end-use environments.


17、IPC-7095: Design and Assembly Process Supplement for SGA Devices. Provides a variety of useful operational information for those who are working with SGA devices or are considering moving into the field of array package formats; provides guidance on testing and repairing SGAs and provides reliable information on the SGA field.




18、IPC-M-I08: Cleaning Instruction Manual. Includes the latest version of the IPC Cleaning Guide to assist manufacturing engineers when deciding on the cleaning process and troubleshooting of their products.


19、IPC-CH-65-A: Cleaning Guide in Printed Circuit Board Assembly Question #e#19) IPC-CH-65-A: Cleaning Guide in Printed Circuit Board Assembly. Provides a reference for current make and emerging cleaning methods in the electronics industry, including descriptions and discussions of various cleaning methods, explaining the relationship between various materials, processes, and contaminants in manufacturing and assembly operations.


20、IPC-SC-60A: Handbook of Solvent Cleaning After Soldering. Gives the use of solvent cleaning techniques in automated and manual welding, discussing the nature of solvents, residues, and process control and environmental aspects.


21、IPC-9201: Surface Insulation Resistance Handbook. Contains terminology, theory, test procedures and test methods for Surface Insulation Resistance (SIR). Also includes temperature and humidity (TH) testing, failure modes and troubleshooting.


22、IPC-DRM-53: Introduction to Electronic Assembly Desktop Reference Manual. Illustrations and photographs used to illustrate through-hole mounting and surface mount assembly techniques.


23、IPC-M-103: Surface Mount Assembly Manual Standard. This section includes all 21 IPC documents pertaining to surface mount.


24、IPC-M-I04: Printed Circuit Board Assembly Manual Standard. Contains the 10 most widely used documents on printed circuit board assembly.


25、IPC-CC-830B: printed circuit board assembly in the performance and qualification of electronic insulating compounds. Conformal coating meets the quality and qualification of an industry standard.


26、IPC-S-816: surface mount technology process guide and checklist. This troubleshooting guide lists all types of process problems encountered in surface mount assembly and their solutions, including bridging, solder leakage, and poor component placement alignment.


27、IPC-CM-770D: Printed Circuit Board Component Mounting Guide. Provides effective guidance for the preparation of components for printed circuit board assembly and reviews relevant standards, influences and issuances, including assembly techniques (both manual and automated as well as surface mount technology and flip chip assembly techniques) and considerations for subsequent soldering, cleaning and laminating processes.


28、IPC-7129: Calculation of the number of failures per million opportunities (DPMO) and manufacturing metrics for printed circuit board assembly. A benchmark for calculating defects and quality related industry consensus metrics; it provides a satisfactory method for calculating a benchmark metric for failures per million opportunities.


29、IPC-9261: Printed circuit board assembly yield estimates and failures per million opportunities during assembly. Defines a reliable method for calculating the number of failures per million opportunities in the assembly of printed circuit boards and is a metric for evaluation at various stages of the assembly process.


30、IPC-D-279: Design Guide for Reliable Surface Mount Technology Printed Circuit Board Assemblies. A guide to a reliable manufacturing process for surface mount technology and mixed technology printed circuit boards, including design ideas.


31、IPC-2546: Combined Requirements for Transfer Points in Printed Circuit Board Assembly. Describes material movement systems such as actuators and buffers, manual placement, automated screen printing, automated binder dispensing, automated surface mount placement, automated plated through-hole placement, forced convection, infrared reflow ovens, and wave soldering.


32、IPC-PE-740A: Troubleshooting in printed circuit board manufacturing and assembly. Includes case documentation and correction activities for problems that occur during the design, manufacture, assembly and testing of printed circuit products.


33、IPC-6010: printed circuit board quality standards and performance specifications series of manuals. Including the American Printed Circuit Board Association for all printed circuit board quality standards and performance specification standards.


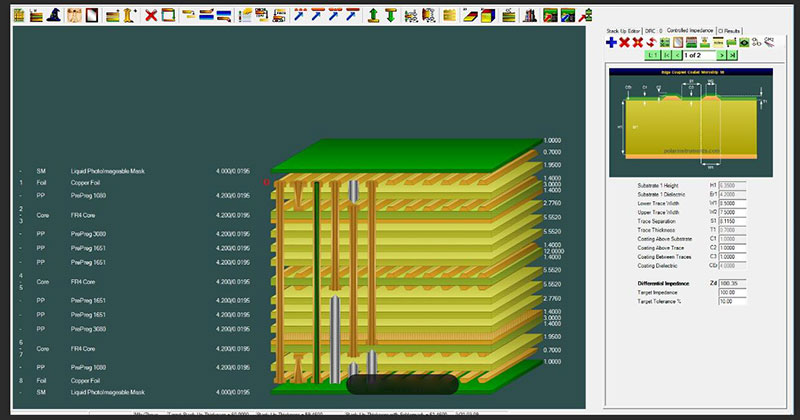

34、IPC-6018A: microwave finished printed circuit board inspection and testing. Includes performance and qualification requirements for high frequency (microwave) printed circuit boards.


35、IPC-D-317A: Guidelines for the design of electronic packages using high-speed technology. Provides guidance for the design of high-speed circuits, including mechanical and electrical considerations and performance testing.
