In the medical electronics industry, a seemingly ordinary PCBA (Printed Circuit Board Assembly) can represent the difference between safety and life-threatening risk. A minor insulation failure on an ECG electrode lead or insufficient creepage distance in a power module—flaws that might be dismissed as mere “quality imperfections” in consumer electronics—can directly endanger patient lives in medical applications.
IEC 60601-1—the international standard for the basic safety and essential performance of medical electrical equipment—serves as the cornerstone of global medical device compliance. For PCBA design, this standard is not an optional “value-add”; it is a mandatory requirement that must be embedded into the design DNA from the concept stage. This article systematically examines why medical PCBA design must strictly adhere to IEC 60601-1 from five dimensions: electric shock protection, risk management, electromagnetic compatibility, manufacturing processes, and market access.
1、Electric Shock Protection: Starting with Every Millimeter of Spacing Between Components
1.1 Creepage Distance and Clearance — The Invisible Safety Barrier
The most direct impact of IEC 60601-1 on PCBA design is reflected in the mandatory requirements for creepage distance and clearance.
- Clearance:The shortest distance through air between two conductive parts, designed to prevent dielectric breakdown and flashover.
- Creepage Distance:The shortest path along the surface of an insulating material between two conductive parts, designed to prevent surface leakage current.
The standard categorizes these requirements into Means of Operator Protection (MOOP) and Means of Patient Protection (MOPP) , with the latter being significantly more stringent. For circuits directly connected to patients (such as ECG electrodes and temperature sensors), the equipment must meet 2× MOPP requirements between the patient circuit and the mains power supply—meaning that at 250V working voltage and Pollution Degree 2, the creepage distance must reach 8 mm and the clearance must reach 5 mm.
Why is this so strict? Patients may be under anesthesia or in an unconscious state, unable to actively avoid electric shock risks. Additionally, some patients may have implanted devices such as cardiac pacemakers, where even extremely small leakage currents can cause fatal consequences.
| Protection Level | Withstand Voltage (250V Working) | Clearance | Creepage Distance |
| 1× MOOP | 1500 VAC | 2.0 mm | 2.5 mm |
| 2× MOOP | 3000 VAC | 4.0 mm | 5.0 mm |
| 1× MOPP | 1500 VAC | 2.5 mm | 4.0 mm |
| 2× MOPP | 4000 VAC | 5.0 mm | 8.0 mm |
Table 1: IEC 60601-1 clearance and creepage distance requirements for different protection levels (partial example, based on Table 12 and Table 13 of the standard)
1.2 Leakage Current Management: The Life Threshold Below 10 μA
IEC 60601-1 defines four types of leakage current: earth leakage current, enclosure leakage current, patient leakage current, and patient auxiliary leakage current. Among these, CF-type (Cardiac Floating) applied parts have the most stringent requirements for patient leakage current—≤ 0.01 mA (10 μA) DC under normal conditions and ≤ 0.1 mA AC under single fault conditions.
This means that in PCBA design, every insulation structure, every Y-capacitor selection, and every ground point impedance must be precisely calculated with sufficient margin. Designers can reduce leakage current by using low-leakage components, optimizing grounding, implementing shielding, and applying filtering.
Case Warning: In 2025, a well-known patient monitor manufacturer experienced a product recall because the PCBA functional test plan omitted signal integrity validation, leading to intermittent loss of clinical data. This case profoundly illustrates that electrical safety parameters are not merely “performance specifications”—they are safety baselines.
2、Risk Management: From “Designed to Function” to “Designed to Be Safe”
2.1 ISO 14971: Embedding Risk Analysis into the PCBA Design Process
IEC 60601-1-2 (EMC standard) Edition 4 and IEC 60601-1 Edition 3 both introduced a risk-based methodology, requiring manufacturers to follow the ISO 14971 risk management process.
This process requires the PCBA design team to systematically identify potential hazards—including electrical breakdown, patient leakage current exceeding limits, equipment malfunction caused by EMC interference, and critical signal degradation due to noise—and to assess the severity and probability of each, implement risk control measures, and verify their effectiveness.

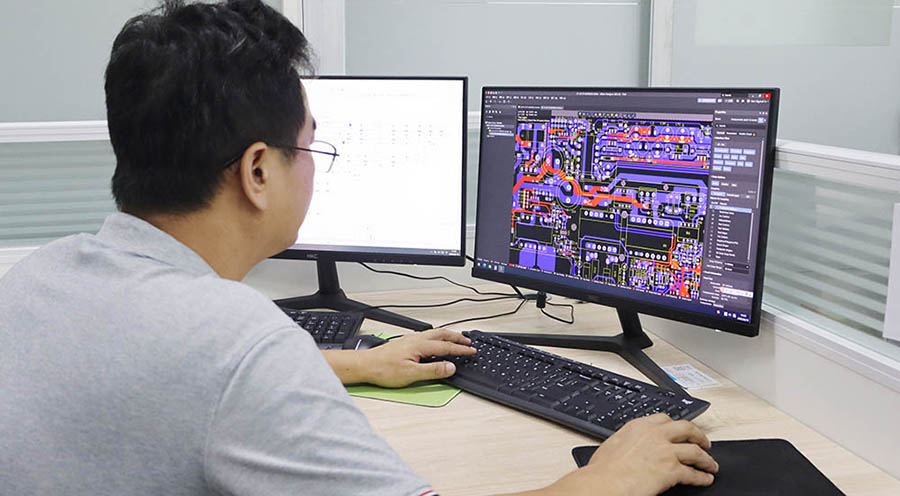

Practical Recommendation: Conduct schematic reviews and DFM (Design for Manufacturability) assessments during the PCBA layout phase to clearly define isolation boundaries, ground topology, and filtering strategies. This prevents structural defects from being discovered only during the later verification stage.
2.2 Single Fault Condition Principle
IEC 60601-1 requires that equipment remain safe under single fault conditions. This means that in PCBA design, the short circuit or open circuit of any single component (capacitor, resistor, optocoupler, transformer) must not result in dangerous voltage reaching patient-accessible circuits.
In practice, this requires:
- Capacitors crossing isolation barriers must be Y1/Y2 class safety capacitors, with appropriate pulse voltage withstand ratings.
- Power paths should incorporate redundancy to ensure that a single device failure does not cause power interruption or voltage surges.
- Programmable logic or MCUs should integrate watchdog timersto prevent software lockups from causing equipment.
Standard IEC 60601-1 also requires that the risk management documentation comprehensively record all activities, including hazard identification, risk assessment, control measures, and safety feature verification.
3、Electromagnetic Compatibility: Protecting Signal Integrity in Complex Electromagnetic Environments
3.1 EMC: Not Just a Standard, But a Design Philosophy
Medical equipment must coexist in hospital environments alongside MRI machines, electrosurgical knives, mobile phones, and various wireless devices. According to IEC 60601-1-2, equipment must simultaneously meet both immunity and emission requirements.
For PCBA design, this means:
- Using solid ground planesto minimize loop areas
- Strategically placing common-mode chokesand TVS diodes at I/O ports
- Implementing precise length matchingfor high-speed differential signal pairs to reduce common-mode radiation
Core Design Principle: Good EMC performance cannot be achieved through late-stage shielding “patches.” It must be addressed at the source—through PCB stackup design, component placement, and routing strategies.
3.2 PSRR (Power Supply Rejection Ratio): Formula and Engineering Practice
PSRR is a key parameter that measures the power supply’s ability to suppress ripple, directly affecting signal acquisition accuracy. Its standard definition is:
Test Method: Inject a swept frequency signal (typically 100 Hz to 10 MHz) into the DUT while measuring ripple amplitude at both the input and output. A PSRR curve is then plotted. For medical device PCBA, it is recommended that the power module achieve PSRR > 80 dB at 1 kHz and > 40 dB at 10 MHz.
4、Manufacturing Processes: Translating Design Standards into Reliable Products
4.1 Process Control and Material Selection
Designs compliant with IEC 60601-1 can only be realized through rigorous manufacturing process control. Key requirements include:
- Material Selection:PCB substrates must have a high CTI (Comparative Tracking Index). Materials such as ceramic substrates (CTI ≥ 600V) or PPS (Polyphenylene Sulfide) plastics are commonly used. FR-4 materials must be selected with high Tg (≥ 170°C) grades to ensure long-term reliability.
- Soldering Processes:Medical PCBA must comply with IPC-A-610 Class 3 standards, which impose stricter requirements on solder joint wetting angles, solder coverage area, and pin coplanarity, with zero defect tolerance.
- Cleanliness Control:Flux residue from soldering can lead to electrochemical migration. Medical PCBA is typically manufactured in Class 10,000 cleanrooms, with ionic contamination levels controlled to ≤ 0.5 μg NaCl eq./cm² (IPC J-STD-001 Level 3).
4.2 Traceability: A “Full Lifecycle Archive” for Every PCBA
The ISO 13485 quality management system requires full traceability throughout the entire medical PCBA manufacturing process. From PCB laminate batch numbers, resistor and capacitor solder paste batches, to pick-and-place programs, reflow temperature profiles, soldering operators, and AOI/X-ray inspection records—every PCBA must have a unique serial number and be traceable back to its source.
Regulatory Requirements: Export to the United States requires compliance with FDA 21 CFR Part 820 (Quality System Regulation). Export to the European Union requires meeting MDR 2017/745 requirements. These regulations explicitly mandate the retention of production process records (typically for the product lifecycle plus an additional 10 years).
5、Case Study: TORTAI Technologies’ Medical Client PCBA Compliance Retrofit
In 2024, a medical device developer commissioned TORTAI Technologies to produce the core PCBA for a patient monitor. During clinical testing, the temperature channel readings exhibited random fluctuations of ±0.5°C, far exceeding the design requirement of ±0.1°C.
Problem Identification
Using a differential probe and low-noise power supply to measure the ADC reference ground, a 30 mVpp ripple was detected (at the same frequency as the DC-DC converter). Additionally, the analog signal trace crossed a ground plane split seam, forming a loop antenna that coupled noise into the signal.
TORTAI Technologies’ Solutions
- Re-planned Grounding:The analog and digital grounds were separated, with a single-point bridge connection using a 0Ω resistor beneath the ADC, ensuring that all analog signal return currents did not pass through the digital area.
- Enhanced Power Filtering:The ADC reference voltage (VREF) was supplied by an independent LDO with an added π-type filter (10 μH + 10 μF + 0.1 μF), reducing ripple from 15 mVpp to 5 mVpp.
- Layout Optimization:Temperature sensor signal traces were guarded with ground traces and routed away from the DC-DC inductor. Ground via arrays were added around critical signal areas at the PCB edge.
- Compliance Verification:EMC pre-compliance testing according to IEC 60601-1-2 was conducted; both radiated emissions and immunity met limits. The design also passed dielectric strength testing (1500 VAC, 1 minute, leakage current ≤ 0.5 mA), confirming isolation design compliance.
Results
The revised PCBA achieved temperature channel reading fluctuations ≤ 0.05°C in subsequent batch testing. Leakage current test results met CF-type requirements (patient leakage current ≤ 0.01 mA DC). The overall product successfully passed IEC 60601-1 Edition 3 certification.
6、FAQ: Common Questions in Medical PCBA Design
Q1: What are the core differences between medical PCBA and ordinary industrial PCBA?
A: The core differences are reflected in four dimensions: reliability level (annual failure rate in ppm), regulatory compliance (IEC 60601-1, ISO 14971, ISO 13485), signal integrity (handling microvolt-level physiological signals with extreme noise sensitivity), and full lifecycle traceability.
Q2: How can physical limitations of insufficient creepage distance be addressed in design?
A: A common technique is to use slots (grooves) in the PCB—cut a slot with a width ≥ 1.0 mm along the isolation boundary in the FR-4 substrate. This directly interrupts the surface creepage path, making the air gap the dominant insulation parameter. The slot width must be included in the final creepage distance calculation. For high-density boards, digital isolators or optocouplers with certified internal insulation can be selected, provided their pin spacing meets standard requirements.
Q3: How do the different applied part types (B, BF, CF) affect PCBA design requirements?
A: According to IEC 60601-1, the applied part classification directly affects leakage current limits and isolation levels:
- Type B (Body):Basic protection, grounded, suitable for equipment that does not come into direct contact with patients (e.g., hospital beds).
- Type BF (Body Floating):Enhanced insulation, suitable for equipment contacting conductive skin surfaces (e.g., ultrasound probes).
- Type CF (Cardiac Floating):Highest protection level, used for direct heart contact (e.g., pacemaker leads), with the most stringent leakage current limits (≤ 0.01 mA DC).
The applied part type should be determined early in the design process based on the device’s intended use, and the isolation strategy and component selection should be planned accordingly.
Q4: Can conformal coating replace creepage distance and clearance requirements?
A: Not completely. After applying conformal coating (such as acrylic resin or parylene), the creepage distance can be calculated based on solid insulation, but the coating’s reliability and long-term stability (adhesion, moisture resistance, insulation strength retention) must be verified. The clearance remains based on air breakdown characteristics and cannot be reduced by coating. If the equipment is used in high-pollution environments (such as operating rooms), the pollution degree may rise to Level 3, requiring the clearance to be multiplied by a 1.5× factor.
Q5: What compliance documents can an ISO 13485-certified PCBA manufacturer typically provide?
A: Typically, manufacturers can provide: relevant portions of the Design History File (DHF) , the Device Master Record (DMR) (including BOM, Gerber files, assembly drawings), the Device History Record (DHR) (unique serial number, material batch data, test data, inspection records for each PCBA), and Process Validation Reports (IQ/OQ/PQ) . These documents are critical supporting materials for the complete device to obtain FDA 510(k) clearance or CE-MDR certification.
Conclusion
Medical PCBA design compliance with the IEC 60601-1 standard is not about “passing an inspection” for certification purposes—it is a technical commitment that places patient safety at the highest priority. From the precise calculation of every millimeter of creepage distance, to the meticulous management of every microamp of leakage current; from the planning of every ground topology path, to the recording of every traceable batch of data—these seemingly meticulous design rules collectively form a “safety net” protecting patient lives.
For companies developing medical electronic products, partnering with an ISO 13485-certified PCBA manufacturer that has deep expertise in IEC 60601-1 standards (such as TORTAI Technologies) at the POC (Proof of Concept) stage can effectively mitigate late-stage design change risks and shorten time-to-market. The ultimate value of compliance standards lies in the reliability of medical PCBA—manifested as the equipment’s ability to operate safely and continuously in operating rooms, ICUs, or home care environments.
