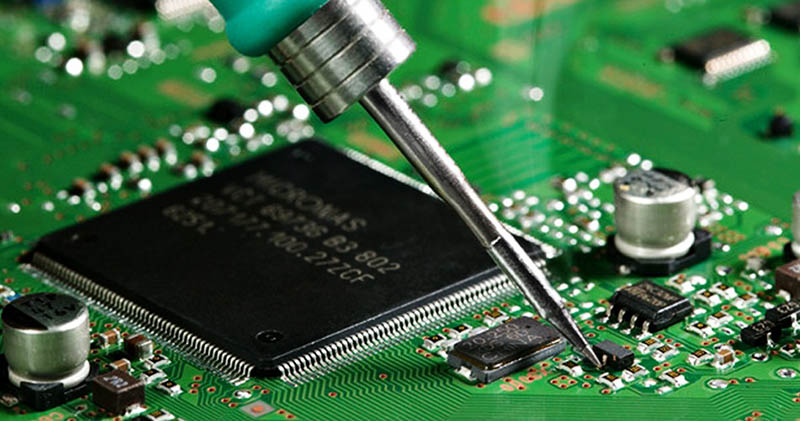

In PCBA assembly, material selection is critical to board performance and reliability. Below are some selection considerations for solder, PCB and packaging materials:
Solder Selection Considerations:
1、 Lead-free solder vs:
Lead-free solder is highly regarded for its environmental friendliness, but it should be noted that its soldering temperature is higher. Leaded solder works at low temperatures, but there are environmental and health risks.
2、Melting point:
Ensure that the melting point of the selected solder is suitable for the temperature requirements of the assembly process and will not cause damage to heat sensitive components.
3、Fluidity:
Ensure that the solder has good flowability to ensure adequate wetting and connection of the solder joints.
4、Heat resistance:
For high temperature applications, select a solder with good heat resistance to ensure solder joint stability.
PCB (Printed Circuit Board) material selection considerations:
1、Substrate material:
Select the appropriate substrate material, such as FR-4 (glass fibre reinforced epoxy resin) or other high-frequency materials, based on application needs and frequency requirements.
2、Number of Layers:
Determine the number of layers needed for the PCB to meet the requirements of signal routing, ground and power planes.
3、Characteristic impedance:
Understand the characteristic impedance of the selected substrate material to ensure signal integrity and match differential pair requirements.
4、Thermal conductivity:
For applications that require heat dissipation, select a substrate material with good thermal conductivity to help dissipate heat.
Package material selection considerations:
1、Package Type:
Select the appropriate package type, such as SMD, BGA, QFN, etc., based on component type and application requirements.
2、Encapsulation material:
Ensure that the selected encapsulation material meets the electrical and mechanical performance requirements. Consider factors such as temperature range, heat resistance, and mechanical strength.
3、Package Thermal Performance:
For components that require heat dissipation, select a package material with good thermal performance, or consider adding a heat sink.
4、Package Size and Pin Spacing:
Ensure that the size and pin spacing of the selected package is suitable for the PCB layout and component layout.
5、Environmental Protection and Sustainability:
Consider choosing environmentally friendly materials that comply with relevant regulations and standards.
When selecting these materials, it is important to work closely with PCBA manufacturers and suppliers to ensure that the material selection meets the requirements of the specific application. Also, understanding the advantages, disadvantages and properties of various materials and their suitability for different applications is key to making an informed choice. Taking into account the complementary nature of solder, PCB and packaging materials ensures the performance and reliability of the PCBA.
