As a core method for evaluating the safety and reliability of Printed Circuit Board Assemblies (PCBAs) in high-voltage environments, insulation resistance testing derives its professionalism from a deep understanding of failure mechanisms, strict adherence to international standards, and closed-loop control over manufacturing processes.
1、The Role of Insulation Resistance Testing in PCBA Manufacturing
The essence of insulation resistance testing lies in assessing a dielectric material’s ability to resist leakage current under an electric field. Its focus is not on the functional implementation of a circuit, but on the integrity of insulation between points at different potentials (e.g., high voltage and low voltage, power and signal, conductor and ground). Unlike functional testing, which verifies logical correctness, this test aims to expose potential failure risks arising from defects in materials, processes, or design.
In high-voltage applications, even if a circuit functions correctly during low-voltage testing, leakage paths can still develop under high electric field strength due to insufficient PCB trace spacing, inadequate creepage distance design, or surface ionic contamination. This can lead to insulation failure. Consequently, insulation resistance testing quantifiably amplifies factors such as material selection (e.g., substrate voltage withstand rating), process control (e.g., cleanliness), and process details (e.g., coating uniformity) in PCBA manufacturing. It serves as a crucial process indicator for manufacturing consistency and reliability, rather than merely a simple pass/fail test for the final product.
2、Primary Risk Sources for PCBAs in High-Voltage Environments
High-voltage environments accelerate various failure mechanisms, making insulation resistance testing an effective tool for uncovering these latent issues. The primary risks originate from physical and chemical factors:
Leakage Paths Caused by Material and Process Defects:
- Surface Contamination and Moisture Absorption:Contaminants such as flux residue, dust, and fingerprints can ionize in humid conditions, forming conductive paths on the surface. This can lead to Electrochemical Migration (ECM). Under DC voltage and humidity, ECM causes metal ions (e.g., copper) to migrate from the anode to the cathode, forming dendrites that can ultimately result in short circuits.
- Internal Structural Defects:In multilayer boards, if the bond between the resin and glass fabric is insufficient, microscopic channels along the glass fibers can form under high temperature, high humidity, and electric field stress, leading to Conductive Anodic Filament (CAF) failure. This is a more insidious form of internal ionic migration that can cause interlayer short circuits.
- Substrate Moisture Absorption and Degradation:When the PCB substrate material absorbs moisture, its dielectric properties degrade, significantly reducing insulation resistance.
Design Limitations Amplified Under High Voltage:
High-density designs reduce the electrical clearance and creepage distance between power and signal areas, or between primary and secondary circuits. Under high voltage, distances that are theoretically safe may become insufficient due to contamination, burrs, or material defects, creating hidden discharge or leakage paths. Insulation resistance testing, by applying high voltage, can proactively identify these weak points in the design that are exacerbated by real-world manufacturing variations.

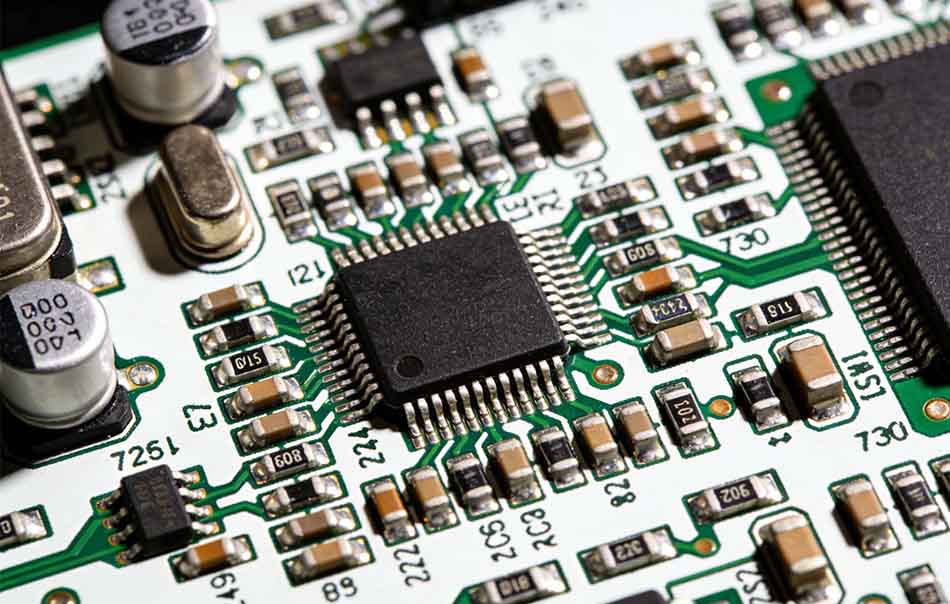

3、Closed-Loop Feedback Between Insulation Resistance and PCB Design
Proper PCB design forms the first line of defense for insulation performance. Relevant standards (such as IPC-2221) provide clear requirements for electrical clearance and creepage distance. However, theoretical calculations cannot fully account for manufacturing variables, such as uneven solder mask thickness, copper plating quality in vias, or carbonization from laser cutting.
Integrating insulation resistance testing into the post-assembly verification phase provides valuable empirical feedback for the design process. For example, if testing reveals that insulation resistance values for a specific spacing are nearing lower limits, it might indicate the need to add a slot to extend the creepage path or optimize the solder mask opening design. This “design-manufacturing-testing-reoptimization” closed loop is critical for PCBAs used in power modules, isolated communication interfaces, and high-voltage energy storage, enabling a progression from “design compliance” to “manufacturing reliability.”
4、Direct Impact of Process Control on Test Results: Data-Driven Process Optimization
Insulation resistance test results serve as a barometer for the overall process capability of PCBA manufacturing, showing a strong correlation with key process steps:
- Cleaning Processes:Inadequate removal of flux residue after soldering, especially ionic residues from water-based cleaning agents, can form a moisture-absorbing conductive film on the board surface, severely reducing Surface Insulation Resistance (SIR). SIR testing is a direct method for monitoring cleaning effectiveness.
- Drying and Baking:If PCB substrates or assembled PCBAs are not adequately baked to remove internal moisture, vaporization during high-voltage testing or subsequent operation can cause transient insulation performance degradation or even breakdown.
- Conformal Coating and Potting:The thickness, uniformity, and coverage of conformal coatings or potting compounds directly impact their protective effectiveness. Insulation resistance testing can verify that the coating is free from pinholes or weak areas under high voltage, ensuring effective isolation from environmental contaminants.
- Material Selection:Using materials with high Comparative Tracking Index (CTI), low moisture absorption, and CAF resistance can fundamentally enhance insulation performance.
By analyzing insulation resistance test data, one can trace back and quantitatively evaluate the effectiveness of these critical process steps, enabling a shift from “experience-based control” to “data-driven” scientific process management.
5、Professional Test Methods, Standards, and Application Scenarios
Implementing insulation resistance testing requires rigorous methods and adherence to standards to ensure comparability and authority of results.
Test Methods
- Insulation Resistance Test:Typically uses a megohmmeter (insulation resistance tester) to apply a DC high voltage (e.g., 500V DC or 1000V DC) between conductors or between a conductor and ground, measuring the stable resistance value. General requirements often specify insulation resistance ≥ 10 MΩ, while high-reliability applications (e.g., medical, automotive) may demand higher values, reaching 100 MΩ or even >1 GΩ.
- Dielectric Withstand Test (Hi-pot Test):Available in DC (DC Hipot) and AC (AC Hipot) variants. A specified voltage (e.g., 2 × operating voltage + 1000V) is applied for a set duration (e.g., 60 seconds), monitoring whether leakage current exceeds a limit (e.g., <10mA) or if breakdown occurs. This test focuses more on assessing the instantaneous withstand capability of the insulation structure.
- Surface Insulation Resistance (SIR) Test:Typically performed under controlled temperature and humidity conditions (e.g., 85°C / 85% RH) with a bias voltage applied for an extended period (e.g., 168 hours). It is used to evaluate ECM risk and is a critical method for assessing long-term reliability.
Key Standards
- IPC Standards:IPC-9252 (Electrical Testing), IPC-TM-650 (Test Methods), and IPC-A-610 (Acceptability of Electronic Assemblies) serve as foundational references.
- IEC/GB Standards:Examples include IEC 61189-2 (Test Methods) and GB/T 4677 (Test Methods for Printed Boards).
- Industry-Specific Standards:Automotive electronics must comply with ISO 16750 or AEC-Q series requirements; medical devices must adhere to IEC 60601 (e.g., insulation resistance ≥ 50 MΩ @ 500V); aerospace applications follow stricter specifications like MIL-STD-202.
- Typical Application Scenarios:This testing is mandatory for products such as AC-DC/DC-DC power modules, industrial inverters, photovoltaic inverters, electric vehicle On-Board Chargers (OBCs), Battery Management Systems (BMSs), energy storage Power Conversion Systems (PCSs), medical device power supplies, and isolated interfaces. It is a critical component of product safety certifications (e.g., UL, CE).

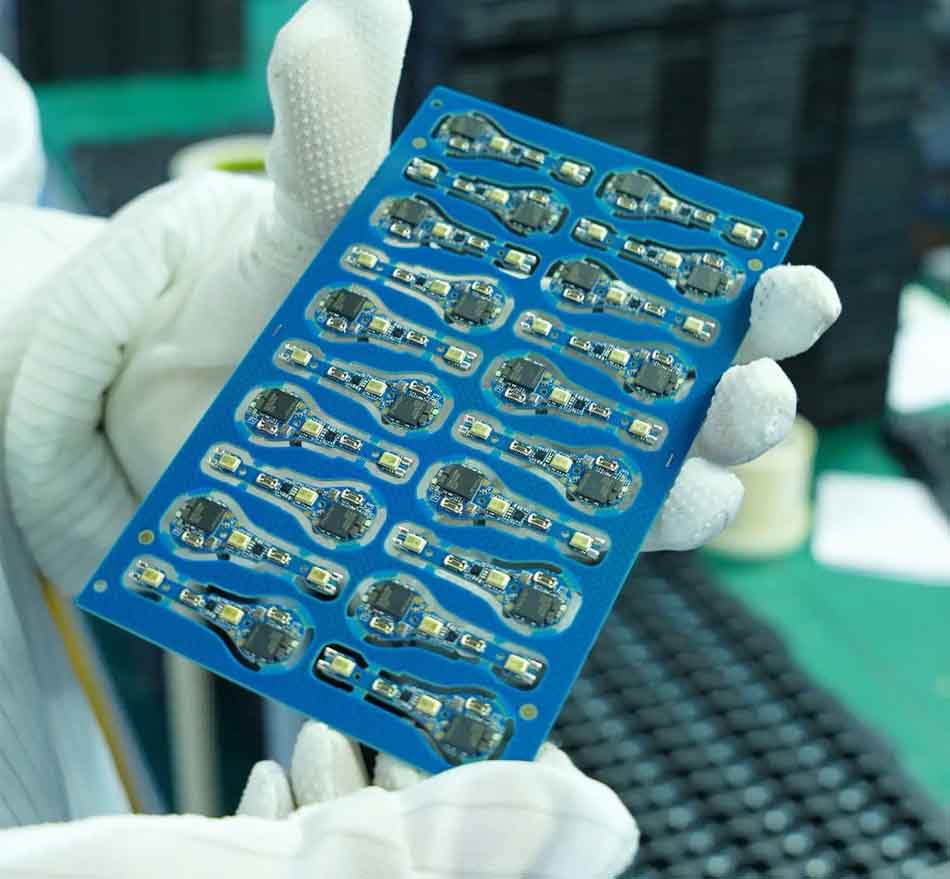

6、Integrating Insulation Resistance Testing into the PCBA Delivery Quality System: Building Customer Trust
Implementing insulation resistance testing as a routine inspection item (e.g., through AQL sampling or 100% testing) prior to batch PCBA delivery offers multiple strategic advantages:
- Risk Interception:Proactively identifies batch issues related to insulation performance caused by material or process variations before shipment, avoiding costly field failures and recalls.
- Proof of Process Capability:Consistently high test pass rates serve as powerful evidence of a PCBA manufacturer’s process control capability and effective quality management system, far outweighing simple visual inspection reports.
- Data Traceability and Improvement:Detailed test data (voltage, resistance, environmental temperature/humidity) should be recorded and integrated into a Quality Management System (QMS) for long-term trend analysis and Continuous Process Improvement (CPI).
- Enhanced Customer Confidence:Providing insulation resistance test reports compliant with international standards significantly reduces customer concerns regarding the reliability of high-voltage applications and fosters long-term technical trust.
- Key Implementation Points:Testing must be conducted in a controlled environment (e.g., 23±5°C, humidity <60% RH), with samples adequately preconditioned to eliminate environmental interference. For high-voltage products, it is advisable to combine insulation resistance testing (assessing steady-state leakage) with dielectric withstand testing (assessing instantaneous strength) for comprehensive evaluation.
Conclusion
Insulation failure under high voltage is sudden and destructive. A professional insulation resistance testing system, deeply integrating an understanding of failure mechanisms, application of international standards, and monitoring of the entire manufacturing process, is the core technical assurance for transforming “high-voltage PCBA reliability” from a design goal into a deliverable reality. For PCBA manufacturers, investing in and mastering this capability is not only a necessary measure to enhance technical barriers and mitigate quality risks but also a crucial step toward advancing into high-end manufacturing sectors.
