From Design to Certification: The Electrical Safety Pathway for Medical PCBA
In medical electronics development, the electrical safety performance of a PCBA (Printed Circuit Board Assembly) stands as one of the final and most critical barriers before a product can reach the market. IEC 60601-1, the general standard for basic safety and essential performance of medical electrical equipment, has been adopted by major global regulatory bodies including the EU MDR, US FDA, and China NMPA, making it a mandatory prerequisite for market access of active medical devices . For medical PCBA, passing IEC 60601 electrical safety certification is not only a regulatory requirement — it is a fundamental commitment to patient safety.
Industry data shows that over 60% of medical electrical equipment fails their first full IEC 60601 test suite . Any strategy relying on post-test remediation will likely lead to significant project delays and cost overruns. This article provides a systematic analysis of how medical PCBA can efficiently pass IEC 60601 electrical safety certification, covering test procedures, design principles, common failure causes, and engineering best practices.
1. Core Test Process and Key Electrical Safety Tests
1.1 Standard Test Sequence
IEC 60601-1 testing typically follows these steps :
- Visual Inspection— Verify markings, labels, and safety symbols comply with standards.
- Classification Review— Classify the device based on patient contact type: Type B (least stringent), Type BF (floating), or Type CF (cardiac floating, most stringent).
- General Standard Testing (IEC 60601-1)— Covers electrical safety, mechanical safety, temperature, radiation, and essential performance.
- Particular Standard Testing (IEC 60601-2-x)— Additional requirements for specific device types (e.g., ECG monitors, infusion pumps).
- Test Report and Certification— Issue a test report in the international TRF format for use in CE, FDA, and other regulatory submissions.
1.2 Key Electrical Safety Test Items
| Test Item | Core Requirement | Typical Pass Criteria |
| Ground Bond | Resistance between protective earth and chassis | ≤ 0.1 Ω |
| Dielectric Strength (Hi-Pot) | Reinforced insulation: 4000 V AC / 1 min, no breakdown | Leakage current ≤ 10 mA (typical) |
| Insulation Resistance | Measured at 500 V DC | ≥ 10 MΩ (normal condition) |
| Leakage Current | Enclosure leakage, patient leakage, patient auxiliary leakage | Normal: ≤ 0.1 mA (enclosure); CF patient leakage ≤ 10 μA DC |
Leakage current testing is the most challenging aspect of medical PCBA certification. Tests must be conducted under both Normal Condition (NC) and Single Fault Condition (SFC) , including scenarios such as disconnection of protective earth, power polarity reversal, and neutral line interruption . For CF-type devices, the patient leakage current limit under SFC is only 50 μA (AC) . Any parasitic coupling from switching power supplies, digital signal lines, or Y-capacitors on the PCBA can cause leakage current to exceed these limits.
2. PCBA Design for IEC 60601 Compliance
Approximately 70% of test success is determined during the design phase. The following principles must be implemented in PCBA layout and component selection.
2.1 Insulation and Isolation Design
IEC 60601-1 introduces the concept of Means of Protection (MOP) , divided into Means of Operator Protection (MOOP) and Means of Patient Protection (MOPP) . For CF-type applied parts that directly contact the heart, the device must meet 2 × MOPP between the patient connection and the mains supply. Under 250 V working voltage and Pollution Degree 2, this requires:
- Creepage distance ≥ 8.0 mm
- Clearance distance ≥ 5.0 mm
Implementation methods in PCB design:
- Slots (Milling):Cut slots along the isolation boundary (width ≥ 1.0 mm) to physically block surface creepage paths.
- Component selection:Use medical-grade digital isolators with 5 kV RMS withstand voltage, ensuring pin spacing meets clearance requirements.
- Material selection:The Comparative Tracking Index (CTI) of the PCB substrate directly affects creepage distance calculations. Materials with CTI ≥ 600 (e.g., ceramic substrates, PPS) allow smaller creepage distances, while standard FR-4 (CTI 130–175) requires larger distances, creating challenges for high-density designs .
- Leakage current control:Y-capacitor values must be precisely calculated. A 1 nF Y-capacitor on an AC mains-powered monitor can theoretically produce 72 μA of leakage current, already approaching the normal-state limit .
2.2 Power Supply and Grounding Design
The power input section of a medical PCBA is a critical area for electrical safety. Strict insulation requirements apply between L/N, L/N to PE, and primary to secondary circuits. For wide-range input (100–240 V AC), basic insulation clearance ≥ 2.5 mm, and reinforced insulation ≥ 5.0 mm are required, with a 20% margin typically added in practice .
Grounding strategy: Use a split ground + single-point bridge technique — separate analog ground, digital ground, and power ground, and connect them at a single point near the power entry using a 0 Ω resistor or ferrite bead. This prevents digital noise from coupling into analog signal areas through the ground plane, reducing interference components in the patient leakage current path .
2.3 Risk Management Integrated into the Design Process
IEC 60601-1 Edition 3 is deeply integrated with ISO 14971 risk management . During the PCBA design phase, a hazard analysis must be conducted to identify risks such as electric shock, overheating, and EMC interference, and control measures must be implemented for each. For example, adding overvoltage protection (TVS diodes) on critical power paths and integrating watchdog timers in software-controlled systems are typical practices supported by the risk management file (RMF) .
3. Common Test Failure Causes and Corrective Actions
According to statistics from multiple testing laboratories, the following three categories account for the vast majority of electrical safety test failures :
3.1 Insufficient Isolation and Insulation Design
Typical symptom: Breakdown of the PCB or isolation transformer during hi-pot testing; insufficient creepage distance between optocoupler pins.
Corrective actions:
- Strictly separate primary circuit, secondary circuit, and applied part during schematic design.
- Use physical slots to increase creepage distance on the PCB.
- Replace components with medical-grade switching power supplies and isolation devices rated for higher withstand voltage.
3.2 Leakage Current Exceeding Limits
Typical symptom: CF-type patient leakage current reaches 150 μA under SFC, far exceeding the 50 μA limit.
Corrective actions:
- Relocate Y-capacitors to the secondary side of the isolation transformer and remove inner-layer copper beneath them.
- Implement a “triple redundancy” isolation strategyon patient-connected channels: isolated power supply + signal isolation + local analog front-end isolation.
- Route signal lines crossing the isolation barrier verticallyto avoid parallel routing that introduces distributed capacitance.
3.3 Improper Material and Process Selection
Typical symptom: After humidity-heat cycling (40 °C / 93% RH), insulation resistance drops below 2 MΩ, or surface tracking causes leakage current to exceed limits under SFC.
Corrective actions:
- Select high-CTI substrates (e.g., Rogers RO4350B or Isola I-Tera MT).
- Apply conformal coating(e.g., Parylene or acrylic, thickness ≥ 50 μm) on exposed conductors, and validate through 85 °C / 85% RH / 168-hour aging test.
- For surface finish, use HASL-LFcombined with OSP to ensure long-term insulation stability.
4. Engineering Case Study: Overcoming Leakage Current Challenges

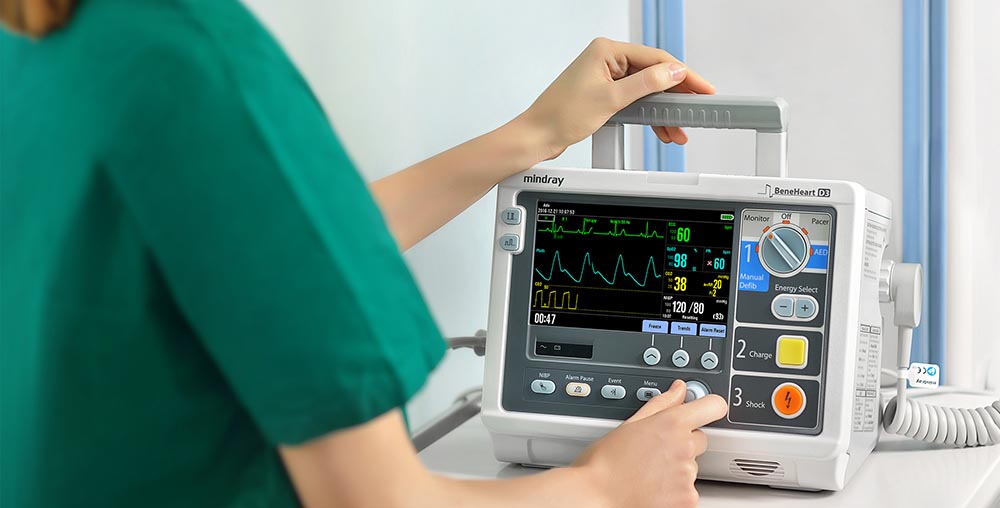

Background: In 2024, a medical device developer contracted Dongguan Gaotuo Electronics Technology Co., Ltd. (Gaotuo Electronics) to manufacture a core PCBA for an ICU portable patient monitor. The applied part was CF-type (direct cardiac contact), requiring patient leakage current ≤ 10 μA DC under normal conditions.
Problem identification: Using a high-precision leakage current tester (GMC-I SECULIFE ST PRO), patient leakage current was measured at 120 μA under SFC (protective earth disconnected). Root cause analysis revealed that the input-side Y-capacitor (2.2 nF) of the DC-DC module, combined with the patient-side GND copper pour, created excessive parasitic capacitance forming a capacitive coupling path.
Gaotuo Electronics solutions:
- Re-planned the isolation zone:Cut a slot (1.2 mm wide) along the isolation boundary on the PCB. Relocated the Y-capacitor from the primary side to the secondary side, and removed all inner-layer copper beneath it.
- Optimized power topology:Replaced the patient-side power supply with an independent LDO + π-filter (10 μH + 10 μF + 0.1 μF) to reduce switching ripple coupling.
- Material upgrade:Used a high-CTI sub-board (Isola I-Tera MT, CTI = 600) for the patient connection area, while standard FR-4 was used for the rest of the board to balance cost and compliance.
- Process validation:Performed dielectric strength testing (4000 V AC / 1 min, leakage current ≤ 0.5 mA) and humidity-heat preconditioning (40 °C / 93% RH / 48 hours) as required by IEC 60601-1. Post-test insulation resistance remained > 100 MΩ.
Results: After redesign, patient leakage current measured 3.5 μA DC under normal conditions and 26 μA AC under SFC — fully compliant with CF-type requirements. The monitor successfully passed IEC 60601-1 certification and entered the EU market.
5. FAQ: Common Questions on Medical PCBA Electrical Safety Certification
Q1: What fault conditions must be simulated during leakage current testing?
A: According to IEC 60601-1, Single Fault Condition (SFC) testing must include: disconnection of protective earth (PE), power polarity reversal (L/N swap), neutral line interruption, and single insulation failure of the applied part. Tests should be conducted at 110% of rated voltage and maximum ambient temperature (40 °C) to simulate the worst-case scenario .
Q2: What is the difference between creepage distance and clearance? Which is harder to meet?
A: Clearance is the shortest distance through air between two conductive parts, preventing dielectric breakdown. Creepage distance is the shortest path along the surface of insulation, preventing surface tracking. In medical PCBA, creepage distance is typically harder to meet because it is affected by pollution degree, material CTI, and surface contaminants. Solder mask cannot be counted toward creepage distance. When space is limited, adding slots is the most effective method to increase creepage distance .
Q3: Can conformal coating replace creepage distance requirements?
A: No, not completely. After coating, creepage distance can be calculated based on solid insulation, but the coating’s long-term reliability (adhesion, humidity resistance, insulation strength retention) must be verified. Clearance distance is still based on air breakdown characteristics and cannot be reduced by coating. If the device is used in high-pollution environments (e.g., operating rooms), the pollution degree may rise to Level 3, requiring a 1.5× multiplier on clearance distances .
Q4: What other standards must a PCBA meet in addition to IEC 60601-1?
A: As a component serving the final assembled device, the equipment must also comply with collateral standards including IEC 60601-1-2 (EMC) , IEC 60601-1-6 (Usability) , and IEC 60601-1-8 (Alarm systems) . In addition, particular standards for specific device types (e.g., IEC 60601-2-24 for infusion pumps) apply. For software-driven devices, IEC 62304 (medical device software lifecycle processes) is also required .
Q5: What support can Gaotuo Electronics provide for medical PCBA compliance?
A: Gaotuo Electronics holds ISO 13485:2016 certification and offers end-to-end services from design and manufacturing to testing and verification. These include:
- DFM (Design for Manufacturing) review— identifying compliance risks such as isolation spacing and material selection early in the design phase.
- Soldering in full compliance with IPC-A-610 Class 3
- Batch-level electrical safety pre-testing(ground bond, hi-pot, insulation resistance) to help clients identify issues before formal certification, reducing time-to-market.
- Support in preparing Risk Management Files (RMF)and technical documentation for CE-MDR and FDA 510(k) submissions .
Conclusion
IEC 60601 electrical safety certification is fundamentally a process of translating patient safety principles into quantifiable technical specifications. Every millimeter of creepage distance, every microamp of leakage current, and every step of the risk management process demands deep technical expertise from both the design team and the manufacturing partner.
For medical device developers, partnering with an ISO 13485-certified manufacturer like Gaotuo Electronics that understands IEC 60601 requirements from the PCBA design stage can significantly reduce the risk of late-stage design changes and increase the probability of first-pass certification to over 80%. Electrical safety in medical PCBA ultimately translates into the ability of the equipment to operate safely and reliably in the operating room, ICU, or home care environment — the ultimate purpose behind the century-long evolution of the IEC 60601 standard family.
